Beskrivelse

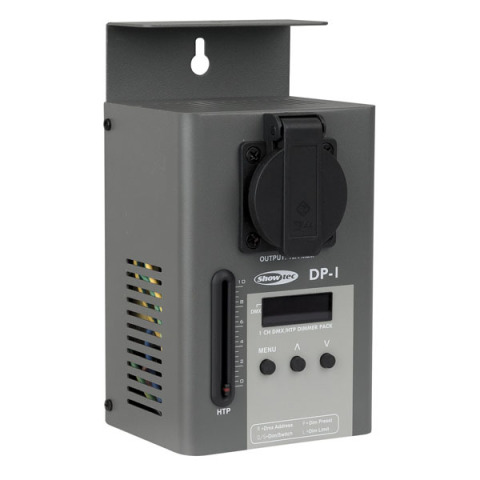

One channel DMX Dimming/Switch Pack
• 512 DMX-channels
• Wall / Truss mounting
• 50 mm dimming slider
• Dim and switch
• Dimming pre-set
• Dimming limit
• Capacitive load 10A, Inductive load 5A.
Specifications
Voltage: AC 230V-50 Hz (CE)
Channel-Output: 10A max.
DMX-Output: 3-pin XLR socket
(female)
DMX-Input: 3-pin XLR socket (male)
Fuse: F 10A 250V 5 x 20 mm
Dimensions: 195 x 105 x 90 mm (LxWxH)
Weight: 1,26 kg
